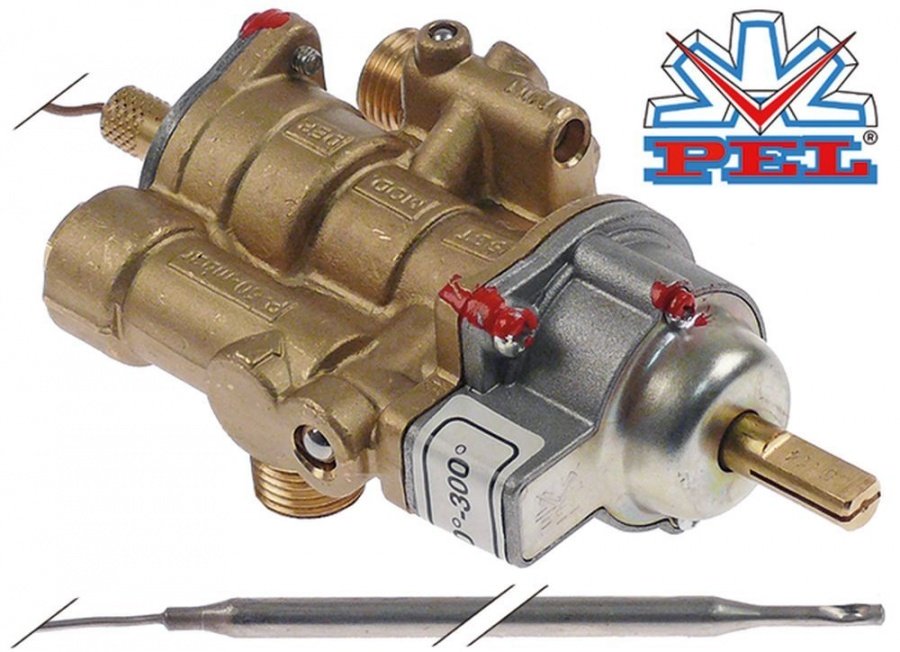

| producer |
PEL |
| type |
25ST |
| temperature range |
100-300 °C |
| gas inlet |
M16x1.5 (tube ø 10 mm) |
| bypass nozzle ø |
0.35 mm |
| gas outlet |
M16x1.5 (tube ø 10/8 mm) |
| thermocouple connection |
M9x1 |
| pilot connection |
M10x1 |
| capillary pipe length |
1200 mm |
| probe diameter |
6 mm |
| probe length |
100 mm |
| shaft diameter |
8x6.5 mm |
| shaft length |
21/15 mm |
| shaft flat |
upper |
PEl - 990026
BERTO'S - Bratt pan - G6F6-T-A6, G7BR8
BERTO'S - Fry top - G6FL3B, G6FL3B-CR, G6FL3B-SX, G6FL6B, G6FL6B-CR, G6FL6B-SX, G6FM6B, G6FR3B, G6FR6B, G7FL4B, G7FL4B-CR, G7FL4B-SX, G7FL4M, G7FL4M-CR, G7FL4M-SX, G7FL8B-2-CR, G7FL8B-2-SX, G7FL8M-2, G7FL8M-2-CR, G7FL8M-2-SX, G7FM8B-2, G7FM8M-2, G7FR4B, G7FR4M, G7FR8B-2, G7FR8M-2, LXG9FL4-CPD, LXG9FL8-2-CPD
BERTO'S - Kitchen electric - G7F6E-FG-A6, G7F6-T, G9F4-FE1, G9F6-FE1, G9F8-2FE1, G9TP-FG, SG9F8P-2FG
BERTO'S - Kitchen gas - G6F6PW-T, G7F4E-FG, G7F4E-FG-A4, G7F4-FG, G7F4P-FG, G7F4P-FG-AF2, G7F4PW-FG, G7F6E-FG, G7F6E-T, G7F6-FG, G7F6P-FG, G7F6P-FG-AF2, G7F6P-T, G7F6P-T-AF2, G7F6PW-FG, G7F6PW-T, G7T4P4F-FG, G7TP2F-FG, G7TP2F-T, G7TP-FG, G9F4-FG, G9F4P-FG, G9F4P-FG-AF2, G9F6-FG, G9F6P-FG, G9F6P-FG-AF2, G9F6P-T, G9F6P-T-AF2, G9F6-T, G9F8-2FG, G9F8P-2FG, G9F8P-2FG-AF2, G9TP2F-FG, G9TP2F-T, G9TP4F-FG, G9TPF-FG, SG9F6-FG, SG9F6P-FG, SG9F6P-T, SG9F8-2FG, SG9TP2F-FG, SG9TP4F-FG, SG9TP-FG
DEXION - Bratt pan - MG066-03-015
DEXION - Fry top - MG046-03-001, MG046-03-002, MG046-13-001, MG046-13-002, MG066-03-003, MG066-03-004, MG066-03-005, MG066-13-003, MG066-13-004, MG066-13-005, MG106-03-003, MG106-03-004, MG106-13-003, MG106-13-004
DEXION - Kitchen gas - MG157-03-013
HOBART - Convection oven - HGFO7
HOBART - Fry top - HGFT177, HGFT47, HGFT66, HGFT66LC, HGFT77
HOBART - Kitchen electric - HG4SFE7
HOBART - Kitchen gas - HG4SF7, HG4SMFA7, HG6SFA7, HG6SFEA7, HGT2SDFA7, HGT4SF27
LOTUS - Bratt pan - BRF-64G, BRF-74G, BRF-78G, BRF-94G, BRF-98G
LOTUS - Gas oven - FORNO S90 GN2-1 GAS STATICO CARCASSA, FORNO S90 GN3-1 GAS STATICO CARCASSA
MBM - Fry top - GFT106L, GFT106LC, GFT106LR, GFT106LRC, GFT46L, GFT46R, GFT46RC, GFT66L, GFT66LR, GFT66LRC, GFT66R, GFT66RC
MBM - Kitchen gas - G2SSM77
MBM - Pot stove gas - G2SSMA77, G4SM77, G4SMA77, G4SMFA77
MBM - Solid top range - GT4SF27
MODULAR - Fry top - 110-50-FTG-CR, 110-50-FTRG-CR, 65-40-FTG-CR, 65-40-FTRG-CR, 65-70-FTG-CR, 65-70-FTRG-CR, 65-70-FTRRG-CR
MODULAR - Kitchen gas - 110-130-CFG, 110-170-CFG, 110-90-CFG, 90-120-CFG, 90-120-TPFG, 90-160-CFG
MODULAR - Solid top range - 110-90-TPFG, 90-80-TPFG
OFFCAR - Fry top - FTG781
OZTIRYAKILER - Fry top - 7864.40653.03 (OGPG 4065 N PS), 7864.40653.03C (OGPG 4065 N PS), 7864.40653.06 (OGPG 4065 PS), 7864.40653.06C (OGPG 4065 PS), 7864.70653.16 (OGPG 7065 1-2N PS), 7864.70653.16C (OGPG 7065 1-2N PS), 7864.70653.13 (OGPG 7065 N PS), 7864.70653.13C (OGPG 7065 N PS), 7864.70653.19 (OGPG 7065 PS), 7864.70653.19C (OGPG 7065 PS)
OZTIRYAKILER - Kitchen gas - 7865.08658.10 (OFOG 8065 P)
TECNOINOX - Kitchen gas - EEF105GG7, EEF70GG7, EF105GG7, EF12GG9, EF70GG7, EF8GG9, EFX105GGE7, EFX12GG9, EFX12GGE9, P2FG16GG9, PF105GG7, PF12GG7, PF70GG7, PF8GG7, PF8SGG7, PFG12GG7, PFG12GG9, PFG8GG7, PFG8GG9, PFG8SGG7, PFG8SGG9, PFP105GG7, PFP12GG7, PFP70GG7, PFP8GG7, PFPG12GG7, PFPG12GG9, PFPG8GG7, PFX105GG7, PFX105GGE7, PFX12GG7, PFX12GGE7, PFXG12GG7, PFXG12GG9, PFXG12GGE7, PFXG12GGE9
TECNOINOX - Solid top range - PPF70GG7, PPF8GG7, PPF8GG9
